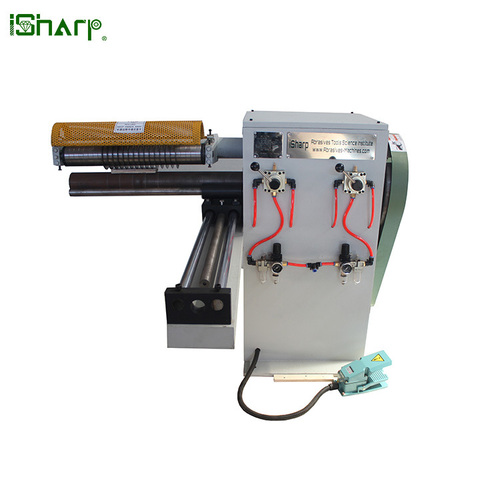

Wide Belt Horizontal Slitting Machine

Wide Belt Horizontal Slitting Machine

5000-7000 USD ($)/Set
Get a Price/Quote

Product Details:

  • Bonding Resin bond, glue bond
  • Grain Type Aluminum oxide, silicon carbide, zirconia alumina
  • Toughness High, suitable for heavy-duty slitting
  • Chemical Composition Varies according to abrasive (Al2O3, SiC, etc.)
  • Backing Cloth, paper, polyester, combination
  • Shape Rectangular strips (from wide belt rolls)
  • Hardness Medium to hard, adjustable with grain selection
  • Click to View more
Request to Call Back Send Inquiry
X

Wide Belt Horizontal Slitting Machine Price And Quantity

  • 0.15 - 7000.00 USD ($)/Set
  • 5000-7000 USD ($)/Set
  • 1 Set
  • 70 dB
  • 0.5 mm
  • Automatic and manual modes
  • PLC touch screen control panel
  • Approx. 3500 mm x 1600 mm x 1700 mm
  • Approximately 1.8 tons
  • Emergency stop, safety guards, interlocks
  • Slitting wide abrasive rolls into narrow strips for belt making
  • 530 meters/min (adjustable)
  • Automatic motorized drive
  • Carbide rotary blades
  • 3-phase, 380V/50Hz or customizable

Wide Belt Horizontal Slitting Machine Product Specifications

  • P16P400
  • Aluminum oxide, silicon carbide, zirconia alumina
  • Resin bond, glue bond
  • Varies according to abrasive (Al2O3, SiC, etc.)
  • High, suitable for heavy-duty slitting
  • Horizontal slitting machine
  • Width adjustable from 10 to 650 mm
  • Abrasive cloth, abrasive paper, sand belt materials
  • Medium to hard, adjustable with grain selection
  • Cloth, paper, polyester, combination
  • Rectangular strips (from wide belt rolls)
  • Width up to 2050 mm, diameter up to 1200 mm
  • 70 dB
  • 0.5 mm
  • Automatic and manual modes
  • PLC touch screen control panel
  • Approx. 3500 mm x 1600 mm x 1700 mm
  • Approximately 1.8 tons
  • Emergency stop, safety guards, interlocks
  • Slitting wide abrasive rolls into narrow strips for belt making
  • 530 meters/min (adjustable)
  • Automatic motorized drive
  • Carbide rotary blades
  • 3-phase, 380V/50Hz or customizable

Wide Belt Horizontal Slitting Machine Trade Information

  • 1000 Set Per Month
  • 30 Days

Product Description

To become a top entity in this domain, we have been engaged in manufacturing and supplying premium grade Wide Belt Horizontal Slitting Machine. This machine is highly appreciated among clients due to its hassle free working and long service life. Offered machine is mainly designed for making the cutting of abrasive belt and other material in a hassle-free manner. Provided machine is made using top-notch quality components by our skilled professionals. Apart from this, offered Wide Belt Horizontal Slitting Machine finds its usefulness in the manufacturing industry. It has various properties such as robust construction and less maintenance.

Technical Specification

  • Slitting belt width:1650mm,2000mm
  • Slitting belt length:1400-3200mm
  • Knife pressure (adjustable): 500Kgf
  • Belt tensioning (adjustable): 180Kgf
  • Installed power:  2.2 KW
  • Pneumatic Pressure: 0.7 Mpa
  • Overall machine dimensions : 2 x 0.9 x 2.5m ( L x W x H)
  • Approx. weight: 1200kg


Advanced Automation and Control

This machine incorporates a modern PLC touch screen panel, granting users intuitive control over slitting speed, cutting dimensions, and operation modes. Transitioning between manual and automatic settings is straightforward, increasing flexibility for varied production demands and ensuring efficient, streamlined operation in industrial settings.


Precision Engineering for Superior Cutting

Equipped with carbide rotary blades and an automatic motorized drive system, the slitting machine achieves high cutting precision (0.5 mm). Whether working with resin or glue-bonded materials, users can rely on consistent, accurate strip widths from 10 mm to 650 mm, ensuring top-quality output for belt manufacturing.


Comprehensive Safety Features

Operator safety is ensured thanks to robust safety elements like emergency stop mechanisms, safety guards, and interlocks. The design meets rigorous industrial safety standards, and noise levels are kept under 70 dB, fostering a safer and more comfortable working environment.

FAQs of Wide Belt Horizontal Slitting Machine:


Q: How does the Wide Belt Horizontal Slitting Machine work?

A: The machine automatically feeds wide abrasive rolls (up to 2050 mm width and 1200 mm diameter) into a horizontal slitting platform. Carbide rotary blades then slit the material into narrow strips, with width adjustable between 10 mm and 650 mm. Operators can select manual or automatic operation and adjust parameters via the PLC touch screen.

Q: What materials and grain types can be processed with this machine?

A: This machine is capable of slitting abrasive cloth, paper, or sand belt materials with grain types including aluminum oxide, silicon carbide, and zirconia alumina. It accommodates grain sizes from P16 to P400 and is suited for abrasives with resin or glue bonds, and various backings like cloth, paper, and polyester.

Q: When should I use automatic mode versus manual mode?

A: Automatic mode is best for consistent, high-volume production, providing speed and efficiency with minimal oversight. Manual mode is ideal for set-up, specialized jobs, or fine-tuning and is useful during maintenance, troubleshooting, or when handling unique material requirements.

Q: Where is this machine typically installed and used?

A: The Wide Belt Horizontal Slitting Machine is typically employed in industrial environmentssuch as abrasive production factories, belt manufacturing plants, or distributor facilitieswhere conversion of wide abrasive rolls into narrow strips is required. It is suitable for both domestic manufacturing and export operations.

Q: What is the process for adjusting the strip width and slitting precision?

A: Strip width is set using the machines control system or touch screen interface, allowing adjustment between 10 mm and 650 mm. Slitting precision, maintained at 0.5 mm, is achieved through the machines automatic motorized drive and precision carbide blades. Regular maintenance ensures continued accuracy.

Q: How do the machines safety features protect the operator?

A: Safety is prioritized with emergency stop buttons, physical safety guards, and interlock mechanisms, which halt operations if access panels are opened. These features reduce the risk of accidents and protect operators during routine use or maintenance.

Q: What are the main benefits of using this horizontal slitting machine?

A: Key advantages include adjustable, high-precision slitting, robust handling of heavy-duty materials, rapid setup, and safe, user-friendly operation. Its versatility in processing various abrasive compositions and backings makes it indispensable for abrasive belt and strip manufacturing.
