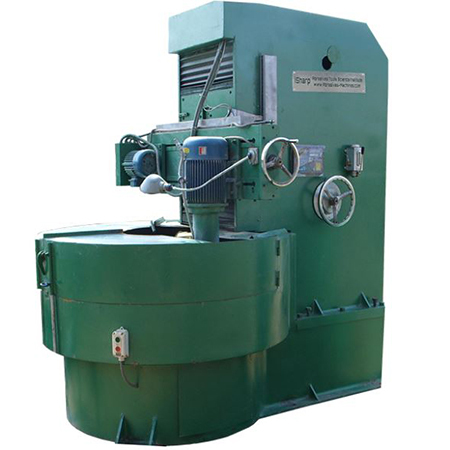

External Cylindrical Dressing Machine

External Cylindrical Dressing Machine
External Cylindrical Dressing Machine
Send Inquiry
Product Code : 08
Price And Quantity
  • Unit of Measure
  • ,
Product Description

Since our inception in the year 1991, we have been indulged in manufacturing and supplying quality tested External Cylindrical Dressing Machine. It is a type of grinding machine used to shape outside of an object. The offered machine cleans and restores a glazed and loaded grinding wheel by cutting surface back to its original sharpness. Provided machine is made using quality tested components by our dexterous professionals at the well-equipped production unit. Apart from this, offered External Cylindrical Dressing Machine is highly cherished among clients owing to its sturdy construction and longer service life.

Technical Specification

Mode

B-SEM-400×300H

Working Range

φ100-400mm 300mmH

Spindle Speed

70-700rpm stepless speed

Motor Power

11KW

Size(L×W×H)

1800×1540×1380mm

Gross Weight

2000kgs

Mode

B-SEM- 400×300V

B-SEM- 750×400V

B-SEM- 600×400V

Working Range

φ100-400mm 300mmH

φ350-750mm 400mmH

φ600-1100mm 400mmH

Spindle Speed

70-500rpm stepless speed

70-500rpm stepless speed

70-500rpm stepless speed

Motor Power

10KW

11.5KW

13.5KW

Size(L×W×H)

1550×1480×2030mm

1600×1480×2060mm

2030×1760×2310mm

Gross Weight

2500kgs

2600kgs

2800kgs
