Mounted Flap Wheel Machine
5000-7000 USD ($)/Set
Product Details:
- Toughness Industrial grade, heavy-duty
- Grain Type Aluminum oxide, Zirconia, Silicon carbide
- Bonding Resin bonded flap wheels support
- Backing Cloth-backed abrasive, paper option available
- Hardness Adjustabledepends on abrasive flap used
- Chemical Composition Main structure: steel body, electricals, and aluminum assembly
- Shape Rectangular/Square (machine housing); cylindrical rolls output
- Click to View more
X
Mounted Flap Wheel Machine Price And Quantity
- 0.15 - 7000.00 USD ($)/Set
- 5000-7000 USD ($)/Set
- 1 Set
Mounted Flap Wheel Machine Product Specifications
- Adjustabledepends on abrasive flap used
- Mounted Flap Wheel Machine
- Rectangular/Square (machine housing); cylindrical rolls output
- Main structure: steel body, electricals, and aluminum assembly
- Stainless steel, Mild steel parts with aluminum assembly
- 10 mm to 100 mm (as per requirement)
- 100 mm to 300 mm (customizable)
- Industrial grade, heavy-duty
- 60, 80, 120, 180, 240, 320 Grit (optional)
- Cloth-backed abrasive, paper option available
- Aluminum oxide, Zirconia, Silicon carbide
- Resin bonded flap wheels support
Mounted Flap Wheel Machine Trade Information
- Qingdao/Shanghai
- 1000 Set Per Month
- 30 Days
- Pallet or wooden case.
- All India
Product Description
With 28 years of experience in this domain, we have been engaged in manufacturing and supplying supreme grade Mounted Flap Wheel Machine. This machine is made using quality assured components under the supervision of our deft professionals at the highly advanced production unit. Offered machine is safely packed to prevent damage during transit. This machine is well suited to be used for producing flap wheel inaccurate shape and size. In addition to this, provided Mounted Flap Wheel Machine is highly cherished among clients due to its trouble-free working, less maintenance, and robust construction.

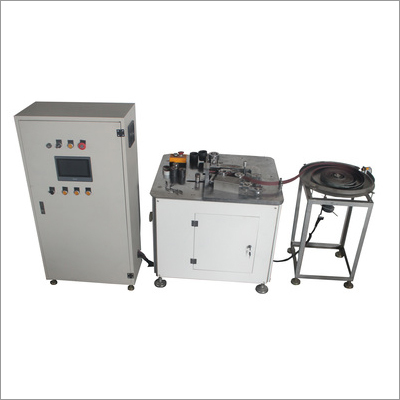

SEMI-AUTOMATIC MOUNTED-FLAP-WHEEL MACHINE
Model: MFW-02
SEMI-AUTOMATIC MOUNTED-FLAP-WHEEL MACHINE Specification:
- Mounted flap wheel scope: Outer diameter 25-80mm, thickness20-50mm.
- Feeding flap: Flaps length: 1-30mm (can be adjusted online), flaps width: 20-30mm.
- Controlling: Digital display and program control.
- Flaps in one wheel: 30-100pcs (can be adjusted online)
- Size: Main machine (length* width*height): 800*560*820mm.
- Size: Control Cabinet (length* width*height): 600*305*1050mm
- Weight: 800kgs
- Power: 2KW.
| Flap wheel diameter | Axile | Grit | Flaps quantity (pcs) | Arranging time (seconds) |
| 25 | 6.3 | 60 | 37 | 6.2 |
| 30 | 6.3 | 60 | 39 | 6.4 |
| 40 | 6.3 | 60 | 45 | 7.2 |
| 50 | 6.3 | 60 | 56 | 8.2 |
| 60 | 6.3 | 60 | 68 | 9.4 |
| 25 | 6.3 | 80 | 39 | 6.4 |
| 30 | 6.3 | 80 | 42 | 6.7 |
| 40 | 6.3 | 80 | 50 | 7.5 |
| 50 | 6.3 | 80 | 60 | 8.6 |
| 60 | 6.3 | 80 | 70 | 9.6 |
Versatile Wheel Manufacturing
This machine accommodates a broad range of wheel diameters (100 mm to 300 mm) and strip sizes (10 mm to 100 mm), making it highly adaptable for various finishing and deburring needs. The modular design allows easy switching between different grain types and grit sizes, supporting both resin-bonded and cloth-backed abrasive wheels, including options for aluminum oxide, zirconia, and silicon carbide.
User-Friendly Operation and Control
Equipped with a semi-automatic mode, the machine is operated either by foot pedal or push button, enhancing both safety and productivity. Its digital control panel features multiple safety mechanisms, ensuring reliable performance and easy parameter adjustment, thus reducing manual error and improving operational efficiency.
Robust Build and Industrial Reliability
Constructed from durable stainless steel with an aluminum assembly and mild steel parts, the machine delivers industrial-grade toughness suitable for heavy-duty applications. Its approximately 350 kg weight ensures stability, while its customizable roll sizes and on-site service support make it an excellent choice for manufacturers aiming for long-term, reliable operation.
FAQs of Mounted Flap Wheel Machine:
Q: How does the mounted flap wheel machine operate?
A: The machine functions in a semi-automatic mode and can be operated either through a foot pedal or a push button, allowing users to maintain safety while controlling production pace. The integrated digital control panel helps set and monitor process parameters for optimal performance.Q: What types of flap wheels can be produced with this machine?
A: This machine can manufacture resin-bonded flap wheels with grain types such as aluminum oxide, zirconia, or silicon carbide. It supports grit sizes from 60 to 320, adjustable hardness depending on the abrasive used, and customizable strip and roll dimensions.Q: When should I use this machine in my production process?
A: This machine is ideal during the manufacturing stage of abrasive products, specifically for forming and assembling mounted flap wheels used in deburring, polishing, and finishing operations across various industries.Q: Where can the mounted flap wheel machine be installed?
A: The machine is primarily designed for industrial manufacturing facilities. It requires a 3-phase, 415 V, 50 Hz power supply and sufficient floor space to accommodate its approximate 350 kg weight and working environment needs.Q: What is the production capacity and how is it determined?
A: The machine can produce up to 800 mounted flap wheels per hour, depending on the selected wheel size, strip size, and operator expertise. Production output may vary with material type and shape adjustments.Q: How does the machines digital control panel enhance the process?
A: The digital control panel features user-friendly operation, allowing precise adjustments of machine settings and integrating essential safety features. This increases consistency and reduces the likelihood of production errors.Q: What are the key benefits of using this mounted flap wheel machine?
A: Key benefits include exceptional adaptability to various abrasive specifications, high production efficiency, industrial-grade durability, straightforward operation, and reliable on-site service and training supportmaking it a solid investment for abrasive manufacturers and suppliers.Tell us about your requirement
