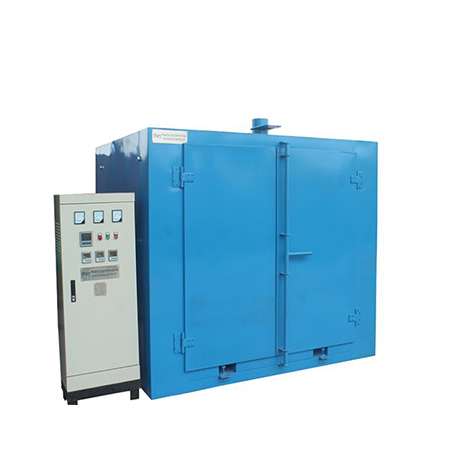

Resin Grinding Wheel Curing Oven

Resin Grinding Wheel Curing Oven

5000-7000 USD ($)/Set

Product Details:

X

Resin Grinding Wheel Curing Oven Price And Quantity

  • 5000-7000 USD ($)/Set
  • 0.15 - 7000.00 USD ($)/Set
  • 1 Set

Resin Grinding Wheel Curing Oven Trade Information

  • 1000 Set Per Month
  • 30 Days

Product Description

We are becoming as one of the fastest growing companies, engaged in the manufacturing and supplying premium grade Resin Grinding Wheel Curing Oven which is mainly used for resin grinding wheel hardening purpose. Provided oven has two fans work facing each other and form forcing air current that avoids heating unevenness and large temperature difference. Offered oven is hardened because it is much better for increasing efficiency of wheel greatly. In addition to this, provided Resin Grinding Wheel Curing Oven has various properties such as longer service life, user-friendly design, power efficiency and robust construction.

Technical Specification

Model

OVN-EXP02

OVN-171

OVN-301/302

OVN-501/502/504

OVN-504T

Inner Cubage

0.22CBM

1.7CBM

3.0CBM

5.0CBM

5.0CBM

Hot Air Circulation

Oppositely blow

Oppositely blow

Oppositely blow

Oppositely blow

Top sucking

Temperature Controlling

Meter
     (5 programs)

Meter
     (5 programs)

Meter
     (5 programs)

Meter(5 programs, 4 temperature points)

Meter(5 programs,4 temperature points))

Heating Controlling

SSR (Solid-state relay)

SSR

SSR

SSR

SSR

Highest Temperature

250o

250o

250o

250o

250o

Working Temperature

185o

185o

185o

185o

185o

Thermocouple

1

1

1/2

1/2/4

4

Temperature Tolerance

2o

2o

2o

2o

2o

Heating Power

2X3X0.5KW

2X6X1KW

2X9X1.6KW

2X9X1.6KW

2X9X1.6KW

Fan Motor Power

2X0.5KW

2X1.5KW

2X1.5KW

2X1.5KW

2X1.5KW

Installed Power

4KW

15KW

31.8KW

31.8KW

31.8KW

Consumption Power

0.5-2KW

8-9KW

10-12KW

10-12KW

10-12KW

Oven Outer Size    (width x depth x height)

1000X800X800

1840X1460X1600

2275X1760X1880

2475X1960X1880

2475X1960X1880

Vehicle Loading Size (width x depth x height)

600X600X600

1160X1128X1170

1550X1450X1280

1720X1550X1280

1720X1550X1280

Weight

110kgs

1200kgs

1700kgs

1700kgs

1700kgs
