Cut to Length Machine

Product Description

We introduce ourselves as one of the major manufacturers and suppliers of premium grade Cut To Length Machine. Offered machine is mainly used for cutting abrasive rolls and other hard material in a smooth manner. Provided machine is checked on different parameters for ensuring defect-free delivery to clients. This machine is made in accordance with the set industry standard with the latest innovative techniques. Used for cutting purpose, offered machine is widely demanded in metalworking, construction, and manufacturing industries. In addition to this, provided Cut To Length Machine has various properties such as enhanced durability, low power consumption, and hassle-free working.

Cut to Length Machine

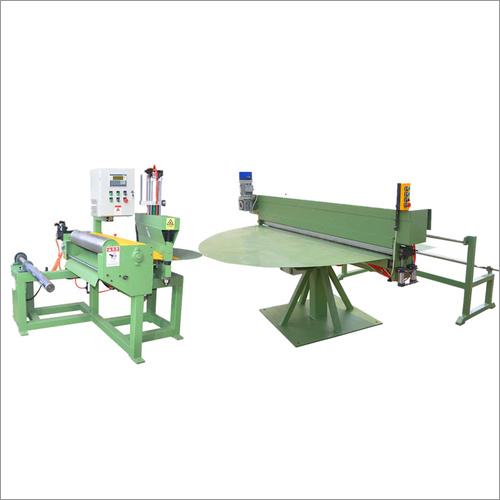

The abrasive belt cut to length machine is designed to cut wide belts of abrasive paper and cloth having a maximum width of 1650 mm (2050 mm also available).

• Knife width:1600mm,2050mm
• Cutting method: Reciprocating crush cutting
• Locking rolls: Pneumatic single edge
• Cutting angle: Clockwise or counterclockwise±67°
• Cutting edge: Rectilinear & wavy
• Installed power:  0.75 KW
• Pneumatic Pressure: 0.7 Mpa
• Bench size (mm):2.5x1.6x0.8m(LxWxH)
• Approx. weight: 1200kg

This automatic abrasive belt cutting machine is used to cut abrasive paper in automatic manner.

• Knife width:600mm
• Cutting method: Punch
• Cutting angle: Clockwise or counterclockwise±67°
• Cutting edge: Rectilinear & wavy
• Installed power: 1KW
• Pneumatic Pressure: 0.7 Mpa
• Bench size (mm):2x0.7x0.8m(LxWxH)

Advanced Control and Efficiency

With a PLC-controlled system and HMI touch panel, the machine facilitates seamless operation and rapid adjustments. The fully automatic line, with its hydraulic expandable mandrel uncoiler and automatic stacker, ensures uninterrupted, efficient processing of coils up to 25 tons, minimizing manual intervention and maximizing productivity.


Superior Cutting Precision and Flexibility

The rotary or flying shear offers high-speed cutting up to 80 meters per minute, delivering sheets and plates with a length tolerance of 0.5 mm. The leveller options (4 Hi/6 Hi) guarantee flatness across various metal types, while customizable grain sizes and finishes broaden its application potential in different industries.


Robust Safety and Comprehensive Support

Emphasizing operator safety, the machine includes emergency stops, safety fencing, and light curtain options. Supported by on-site assembly and commissioning, users benefit from reliable installation and operational training, making the machine safe and easy to integrate into existing production lines.
